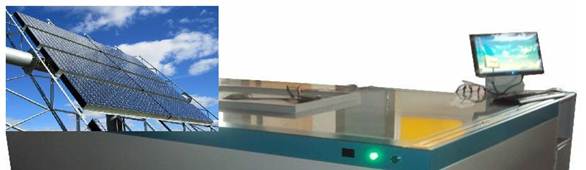

Simulator v1.jpg  worker.jpg

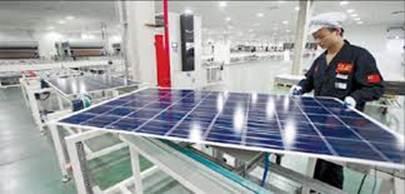

Testing is the last step of panel production.













Thin film solar features only 10% thickness of the chrystalline.

Flat roof.jpg

visible solar window



Solar Panel & System        Solar Roof



Solar-power might be the key of reducing the dependence on fossil fuels. Solar power can offer an instant facility or solution to the area that power grid cannot support.

Because of continuous development for reaching the green energy goal, solar panels have become inexpensive and investment worthy for private and public organizations across the nation in many countries.

Solar panels utilize a photon to supply the electrons in the silicon semiconductor materials. The electrons are able to go more readily through the entire crystal structure. We use the solar cell with 156x156mm size which is mostly and commonly supplied in the market. The panel efficiency is around 20%+. Whatever size your power generator system is, 2MW or 20MW, we can supply the panel no problem. Please check the specifications below for the right type of panel that you need.




Distributor wanted





60-300W Solar Panel

Mono 180w front.JPG

Monochrystalline

Panel



Solar Panel Specfication

60W-300W

60 or 72pcs

LNG-300

156x156

300W

1950x980x45mm

8.23A

36.5V

OLV-250I

156x156

250W

1640x992x45mm

8.04A

38.06V

OLV-230I

156x156

230W

1640x992x45mm

7.68A

36.51V

LNG-215

156x156

215W

1640x990x50mm

7.4A

29.1V

70pcs

LNG-180

125x125

180W

1580x80x35mm

5.03A

35.8V

LNG-170

125x125

170W

1580x80x35mm

4.80A

35.6V

18pcs

OLV-60F

156x156

60W

771x670x35mm

3.49A

17.2V

OLV-65F

156x156

65W

771x670x35mm

3.69A

17.6V

OLV-70F

156x156

70W

771x670x35mm

3.91A

17.9V

for different specification and quote info@4cmart.com

Poly 230w Front.JPG

Polychrystalline

Panel



Quality Assurance

Solar Cell Testing Device.JPG



Before production, the incoming Solar cell/panel are under strictly testing the efficiency, quality and reliability. Power inverter and whole system flow are carefully inspected for the lowest loss. The test and inspect are under advanced instrument application of hardware and software. IntVisio assures your system the real life span and the reliability.





Bejine ISO 212x292.jpg

ISO

CE 248x344.jpg

        CE

TUV solar 230x349.jpg

       TUV
